Torque Reaction Arm

Delvo Torque Reaction Arms

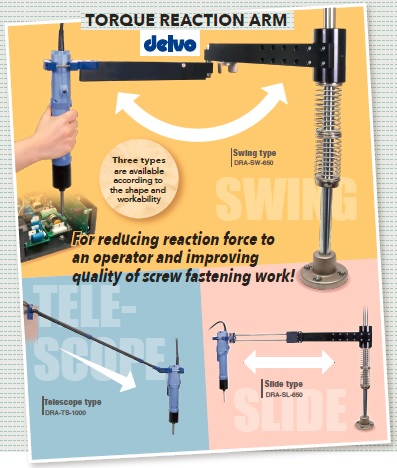

Three types to choose from:

Specifications

Model DRA-SW-650 (Swing type) DRA-SL-650 (Slide type)
Total height mm[in] 550 [21.65]
Mass kg[lbs] 4.2 [9.26]
Maximum operating radius mm[in] R650 [R25.59] (When arm angle is 30°) R400 to R650 [R15.75 to R25.59]
Vertical stroke mm[in] 100 [3.94] (150 [5.91] with stroke extension)
Amount of slide mm[in] N/A 250 [9.84]
Applicable outer diameter of screwdriver mm[in] 30 to 52 dia. [1.18 to 2.05]
Maximum screwdriver weight kg[lbs] 1.0 [2.2]
Applicable models All models of Delvo



Model DRA-TS-1000 (Telescope type)
Operation range (Arm length) mm[in] 503 to 1000 [19.8 to 39.4] (503 to 1123 [19.8 to 44.2])
Mass kg[lbs] 0.47 [1.04]
Applicable outer diameter of screwdriver mm[in] 30 to 52 dia. [1.18 to 2.05]
Applicable models All models of Delvo
