DLV7104 & DLV8104-MKH series

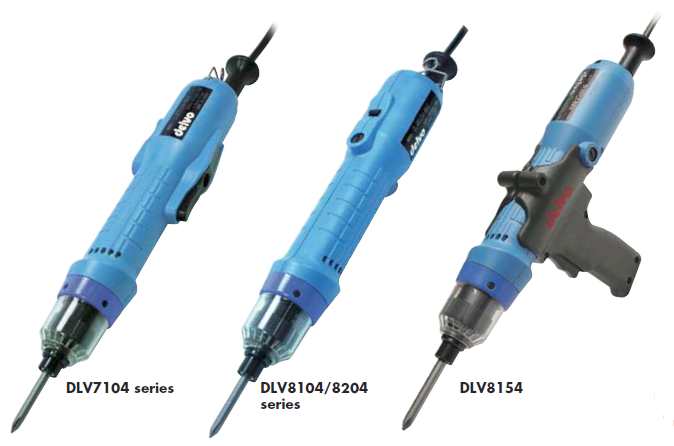

Delvo DLV7104 /8104/8204 series
Features

The most popular models have been redesigned
Equipped with bit grounding mechanism
Long-life cam is utilized
The clear plastic torque adjustment ringncover minimizes unintentional tampering of the preset torque
The changeover switch enables operators to change forward/reverse rotation with a single hand
The ergonomically designed grip can be held tightly to resist against tightening reation force, resulting in reduced operator fatigue

Model		DLV7124MJE	DLV7134MJE	DLV7144MJE	DLV8124MJE	DLV8134MJE	DLV8144MJE	DLV8154MJE	DLV8224MJE	DLV8234MJE	DLV8244MJE
		DLV7124MJH	DLV7134MJH	DLV7144MJH	DLV8124MJH	DLV8134MJH	DLV8144MJH	DLV8154MJH	DLV8224MJH	DLV8234MJH	DLV8244MJH
		DLV7124MKE	DLV7134MKE	DLV7144MKE	DLV8124MKE	DLV8134MKE	DLV8144MKE	DLV8154MKE	DLV8224MKE	DLV8234MKE	DLV8244MKE
		DLV7124MKH	DLV7134MKH	DLV7144MKH	DLV8124MKH	DLV8134MKH	DLV8144MKH	DLV8154MKH	DLV8224MKH	DLV8234MKH	DLV8244MKH
Starting Method		Lever Start			Push to start
Input voltage		230 V AC, 50/60 Hz
Torque Adjustment		Stepless
Torque (Nm)		0.25 – 0.75	0.5 – 1.7	1.2 – 3.0	0.25 – 0.75	0.5 – 1.7	1.2 – 3.0	2.0 – 4.5	0.35 – 0.7	0.5 – 1.7	1.2 – 3.0
Free Speed (rpm)		900		600	900		600	400	2,000	1,800	1,100
Power Consumption (W)		35						45
Screw Size (mm)	Machine Screw	2.6 – 3.0	2.6 – 4.0	3.5 – 5.0	2.6 – 3.0	2.6 – 4.0	3.5 – 5.0	4.5 – 6.0	2.6 – 3.0	2.6 – 4.0	3.5 – 5.0
Screw Size (mm)	Tapping Screw	2.3 – 3.0	2.3 – 3.5	3.0 – 4.0	2.3 – 3.0	2.3 – 3.5	3.0 – 4.0	4.5 – 5.0	2.3 – 3.0	2.3 – 3.5	3.0 – 4.0
Mass (g)		720			710			910	710
